Tunneling itu apa sih ? Tunneling adalah teknik mengenkapsulasi seluruh paket data dari format protokol yang lain. Dengan kata lain, paket data asli akan ditambahkan header dari tunneling protokol tersebut. Hasil enkapsulasi tersebut kemudian akan dikirim melalui infrastruktur jaringan menuju node tujuan.


Kali ini saya mencoba membuat simulasi tunneling secara manual. Topologi perencanaan manual tunneling ini  :

Topology

Yang dibutuhkan untuk implementasi:

1. 1 buah Komputer/Laptop
2. Software GNS3, dapat didownload disini
3. IOS cisco c3725-adventerprisek9-mz.124-18.bin, dapat didownload disini
4. Virtual PC, dapat didownload disini

Konfigurasi R1!
hostname R1
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
ip cef
!
!
!
!
no ip domain lookup
ip auth-proxy max-nodata-conns 3
ip admission max-nodata-conns 3
!
ipv6 unicast-routing
ipv6 cef
!
!
archive
 log config
  hidekeys
!
interface Loopback0
 ip address 10.10.10.1 255.255.255.255
 ipv6 address FEC0::2:1/112
 ipv6 ospf 2 area 0
!
interface Tunnel1
 no ip address
 ipv6 address FEC0::5:1/112
 ipv6 ospf 2 area 0
 tunnel source FastEthernet0/0
 tunnel destination 192.168.2.1
 tunnel mode ipv6ip
!
interface FastEthernet0/0
 ip address 192.168.1.1 255.255.255.0
 speed auto
 full-duplex
!
interface FastEthernet0/1
 no ip address
 speed auto
 full-duplex
 ipv6 address FEC0::1:1/112
 ipv6 ospf 2 area 0
!
router ospf 1
 log-adjacency-changes
 network 10.10.10.1 0.0.0.0 area 0
 network 192.168.1.0 0.0.0.255 area 0
!
ip forward-protocol nd
!
ip http server
no ip http secure-server
!
ipv6 router ospf 2
 log-adjacency-changes
!
control-plane
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
scheduler allocate 20000 1000
!
end
Konfigurasi R2
!
hostname R2
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
ip cef
!
no ip domain lookup
ip auth-proxy max-nodata-conns 3
ip admission max-nodata-conns 3
!
archive
 log config
  hidekeys
!
interface Loopback0
 ip address 10.10.10.2 255.255.255.255
!
interface FastEthernet0/0
 ip address 192.168.1.2 255.255.255.0
 speed auto
 full-duplex
!
interface FastEthernet0/1
 ip address 192.168.2.2 255.255.255.0
 speed auto
 full-duplex
!
router ospf 1
 log-adjacency-changes
 network 10.10.10.2 0.0.0.0 area 0
 network 192.168.1.0 0.0.0.255 area 0
 network 192.168.2.0 0.0.0.255 area 0
!
ip forward-protocol nd
!
no ip http server
no ip http secure-server
!
no cdp run
!
control-plane
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
!
end
Konfigurasi R3
!
hostname R3
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
ip cef
!
no ip domain lookup
ip auth-proxy max-nodata-conns 3
ip admission max-nodata-conns 3
!
ipv6 unicast-routing
ipv6 cef
!
archive
 log config
  hidekeys
!
interface Loopback0
 ip address 10.10.10.3 255.255.255.255
 ipv6 address FEC0::3:1/112
 ipv6 ospf 2 area 0
!
interface Tunnel1
 no ip address
 ipv6 address FEC0::5:2/112
 ipv6 ospf 2 area 0
 tunnel source FastEthernet0/0
 tunnel destination 192.168.1.1
 tunnel mode ipv6ip
!
interface FastEthernet0/0
 ip address 192.168.2.1 255.255.255.0
 speed auto
 full-duplex
!
interface FastEthernet0/1
 no ip address
 speed auto
 full-duplex
 ipv6 address FEC0::4:1/112
 ipv6 ospf 2 area 0
!
router ospf 1
 log-adjacency-changes
 network 10.10.10.3 0.0.0.0 area 0
 network 192.168.2.0 0.0.0.255 area 0
!
ip forward-protocol nd
!
ip http server
no ip http secure-server
!
ipv6 router ospf 2
 log-adjacency-changes
!
control-plane
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
scheduler allocate 20000 1000
!
end

Hasil Implementasi :

Tracert PC2->PC1

Test Ping R3

Interface Tunnel R3

Tracert dari PC1->PC2

Test Ping dari R1->PC2

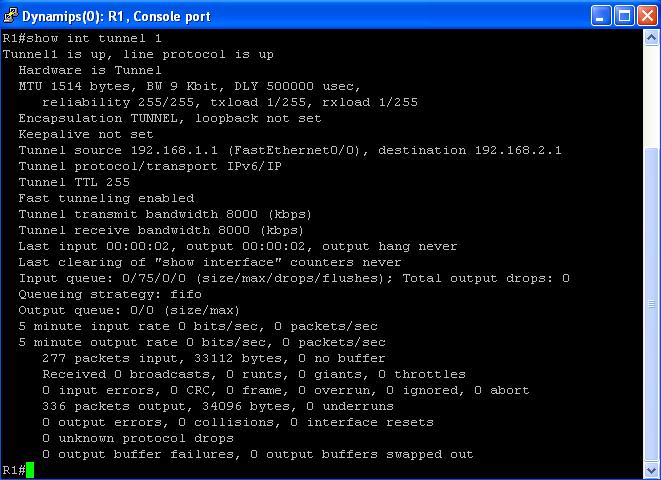

Interface Tunnel di R1
